Efficient Self-Supervised Neuro-Analytic Visual Servoing for Real-time Quadrotor Control

Overview Video

Motivation and Contribution

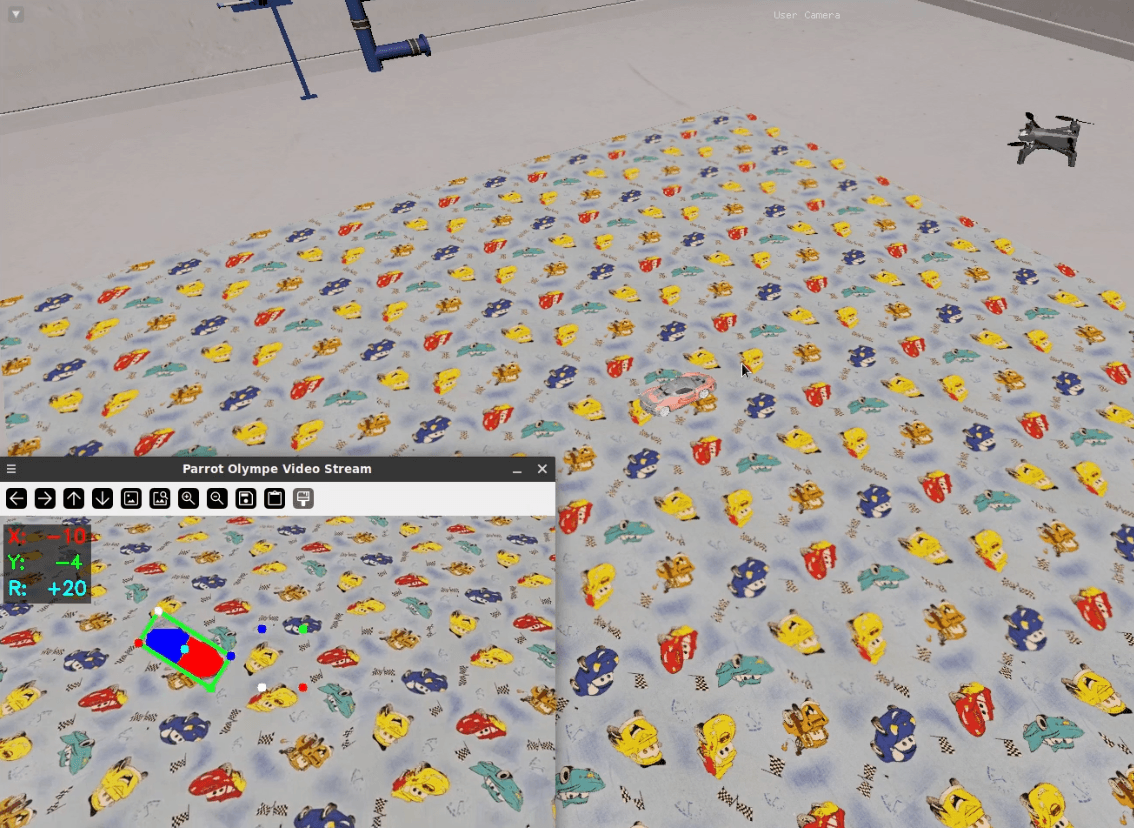

Visual Performance for Teacher

Visual Performance for Student

Our Approach

We propose a Teacher-Student architecture to combine the stability of analytical methods with the efficiency of neural networks. The Teacher (NSER-IBVS) uses a numerically stable analytic control law to generate robust velocity commands. The Student, a lightweight CNN, learns to regress these commands directly from raw images, bypassing the expensive feature extraction pipeline.

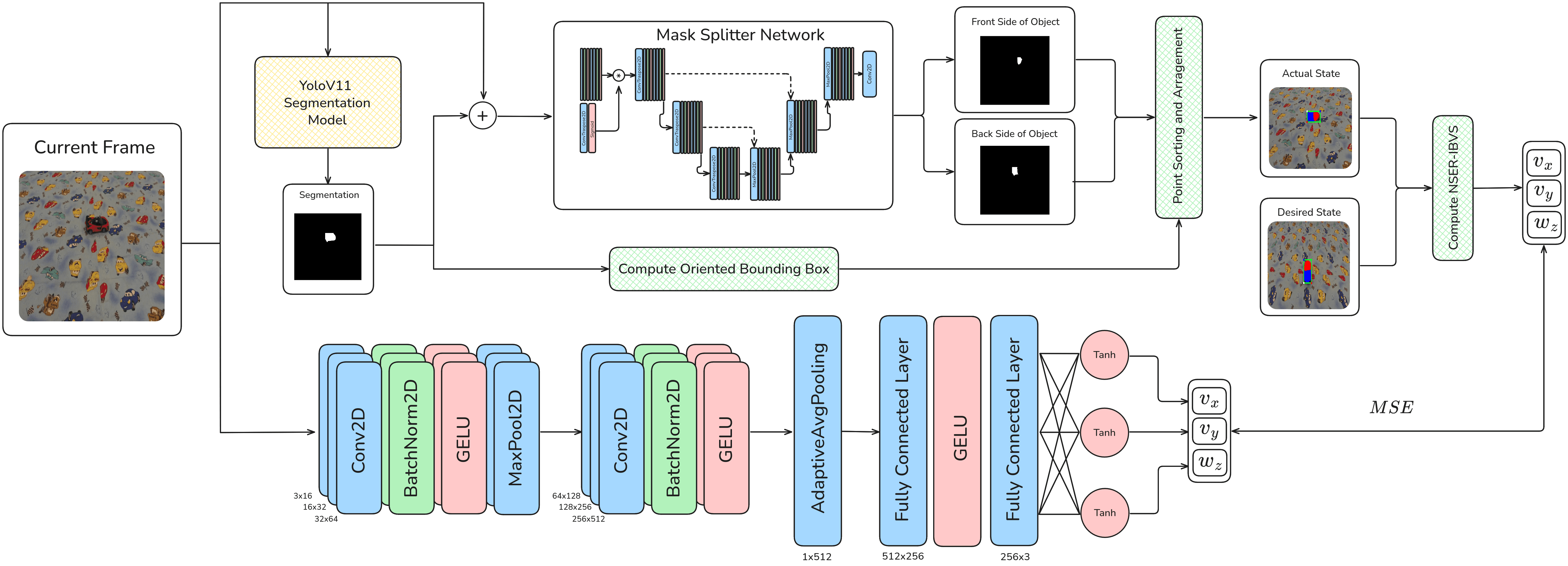

1. Knowledge Distillation & Self-Supervised Learning Pipeline

2. Numerically Stable IBVS Teacher (NSER)

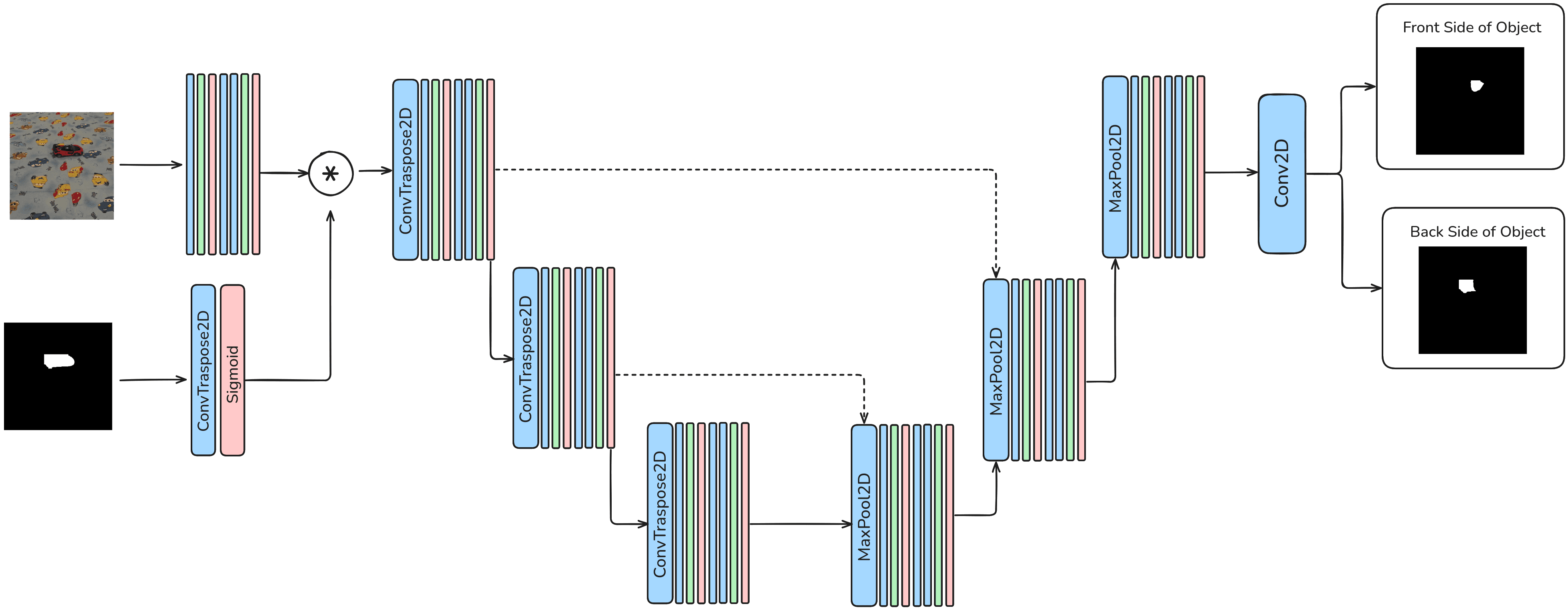

3. Two-Stage Target Segmentation

Why Mask Splitting Matters: Solving Keypoint Ordering

Standard bounding box approaches suffer from keypoint ordering ambiguity, the four corners can be assigned inconsistently across frames, destabilizing the IBVS control loop. Our mask splitter determines which part of the vehicle is front vs. back, enabling consistent clockwise ordering of keypoints for stable visual servoing.

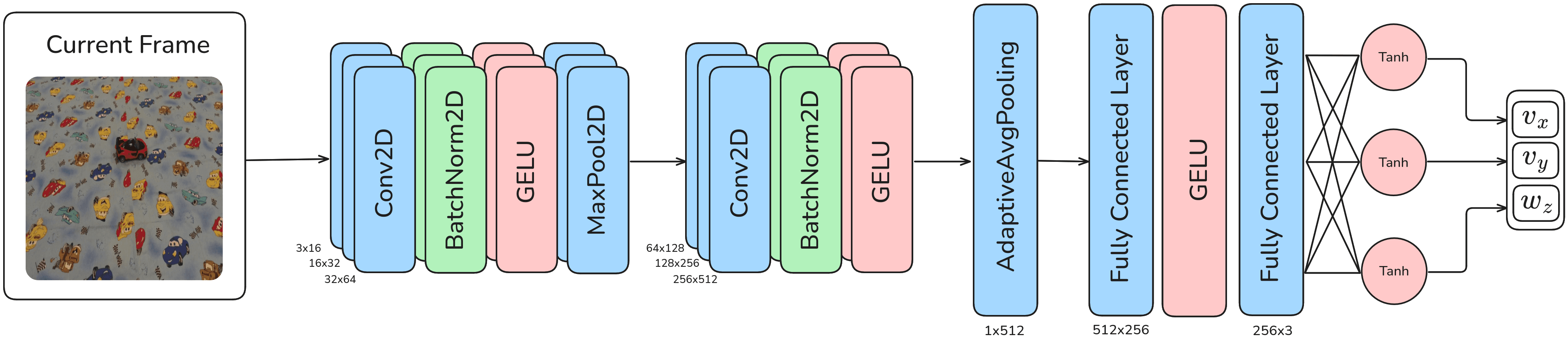

4. Student Neural Network

Goal State Reference

The IBVS controller computes velocity commands by comparing current keypoints to a reference (goal) configuration. Below are the reference images used for real-world and simulated environments:

This integrated approach combines the robustness of analytical control theory with the efficiency and adaptability of neural networks, enabling practical deployment on resource-constrained aerial platforms.

Experimental Setup

Evaluation Framework: High-fidelity digital twin simulator + real-world indoor GPS-denied flights

Evaluation Metrics

• Flight performance: Distance, time
• Control accuracy: Final norm error (px)
• Tracking quality: IoU (last 3s)
• Efficiency: Inference time, FPS

Teacher: Numerically stable IBVS
Student: 1.7M ConvNet (11x faster)

Pre-trained Models

All models are available in the code repository.

Visual Results

Control command and error evolutions over time

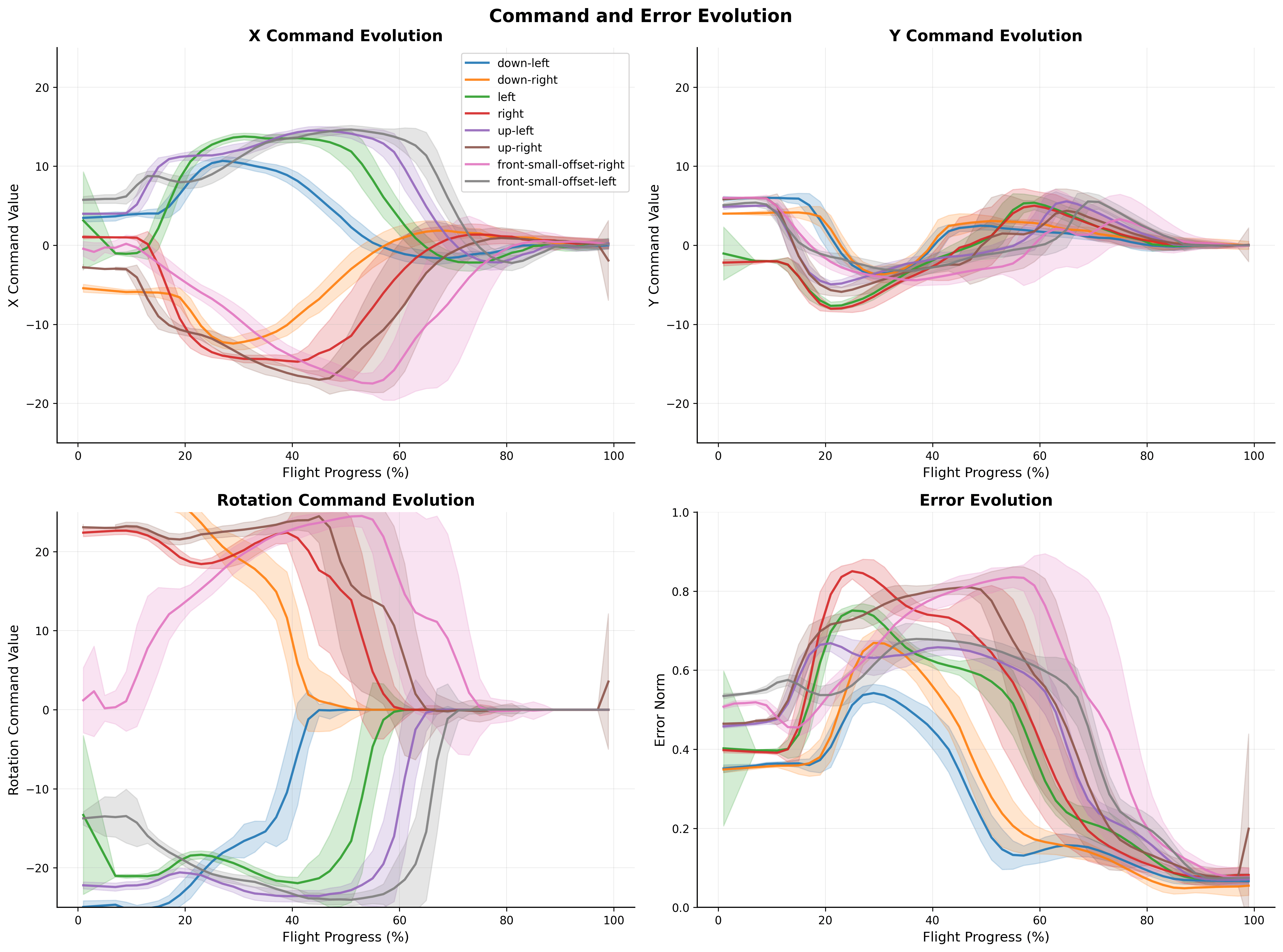

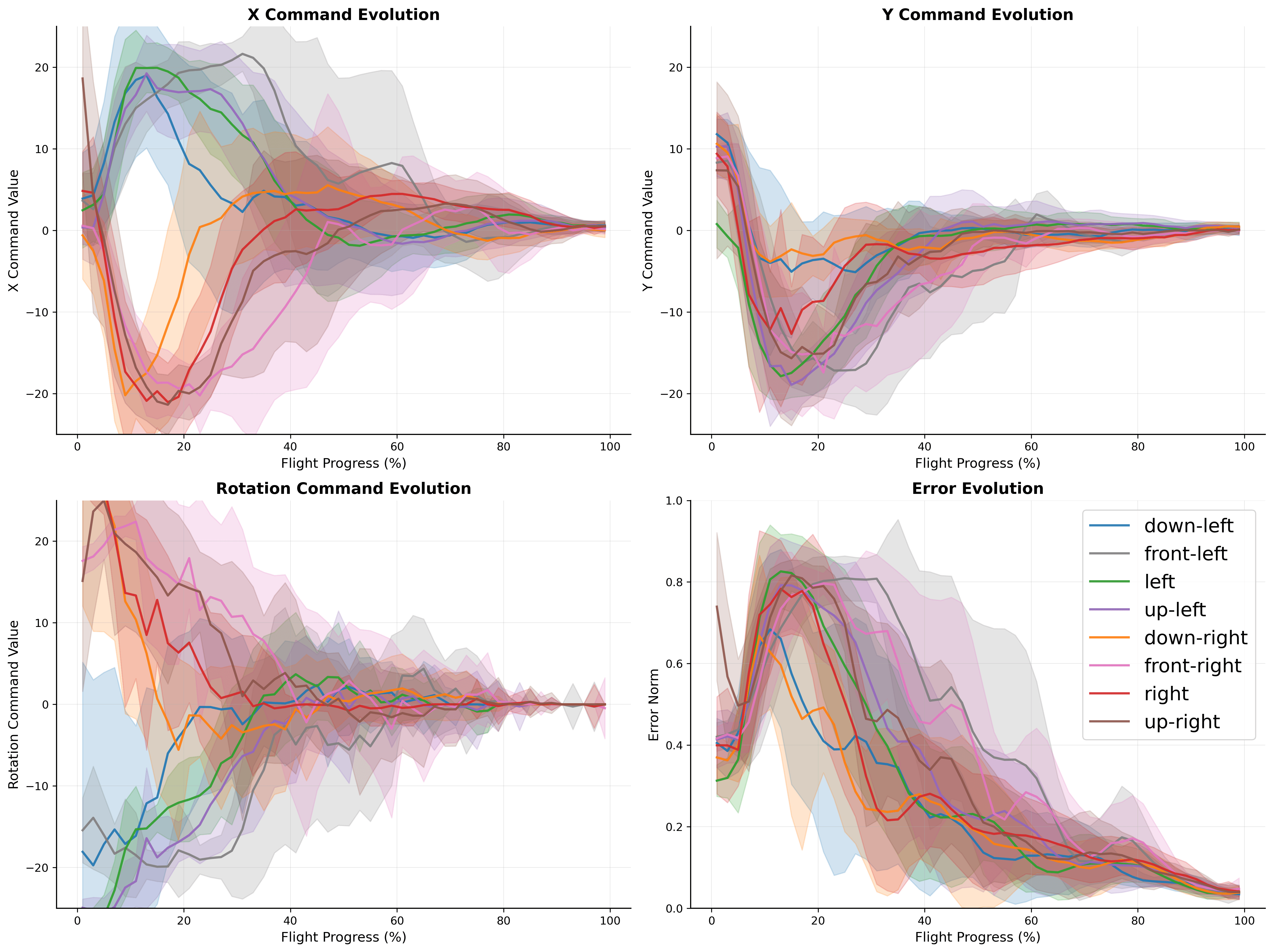

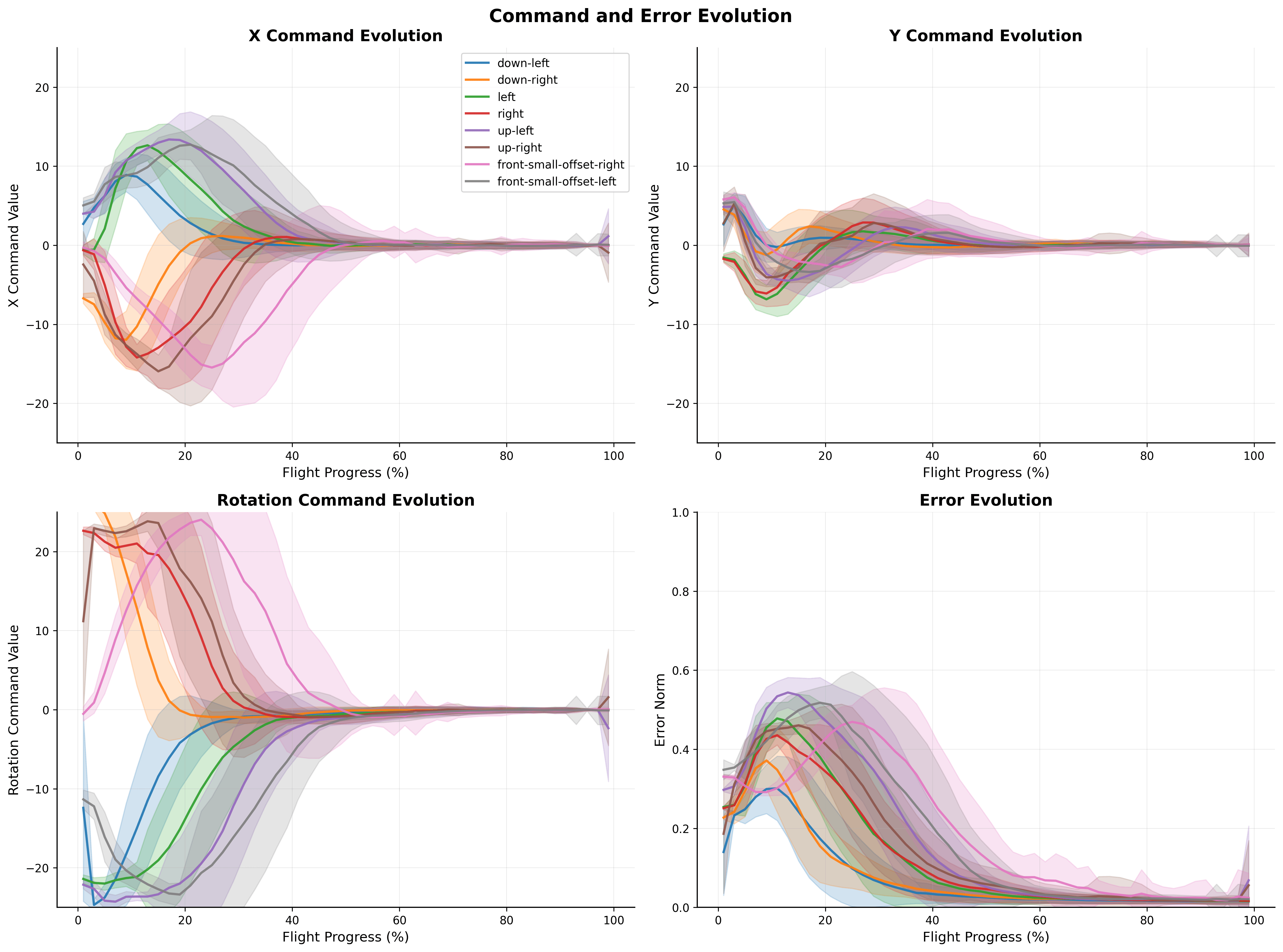

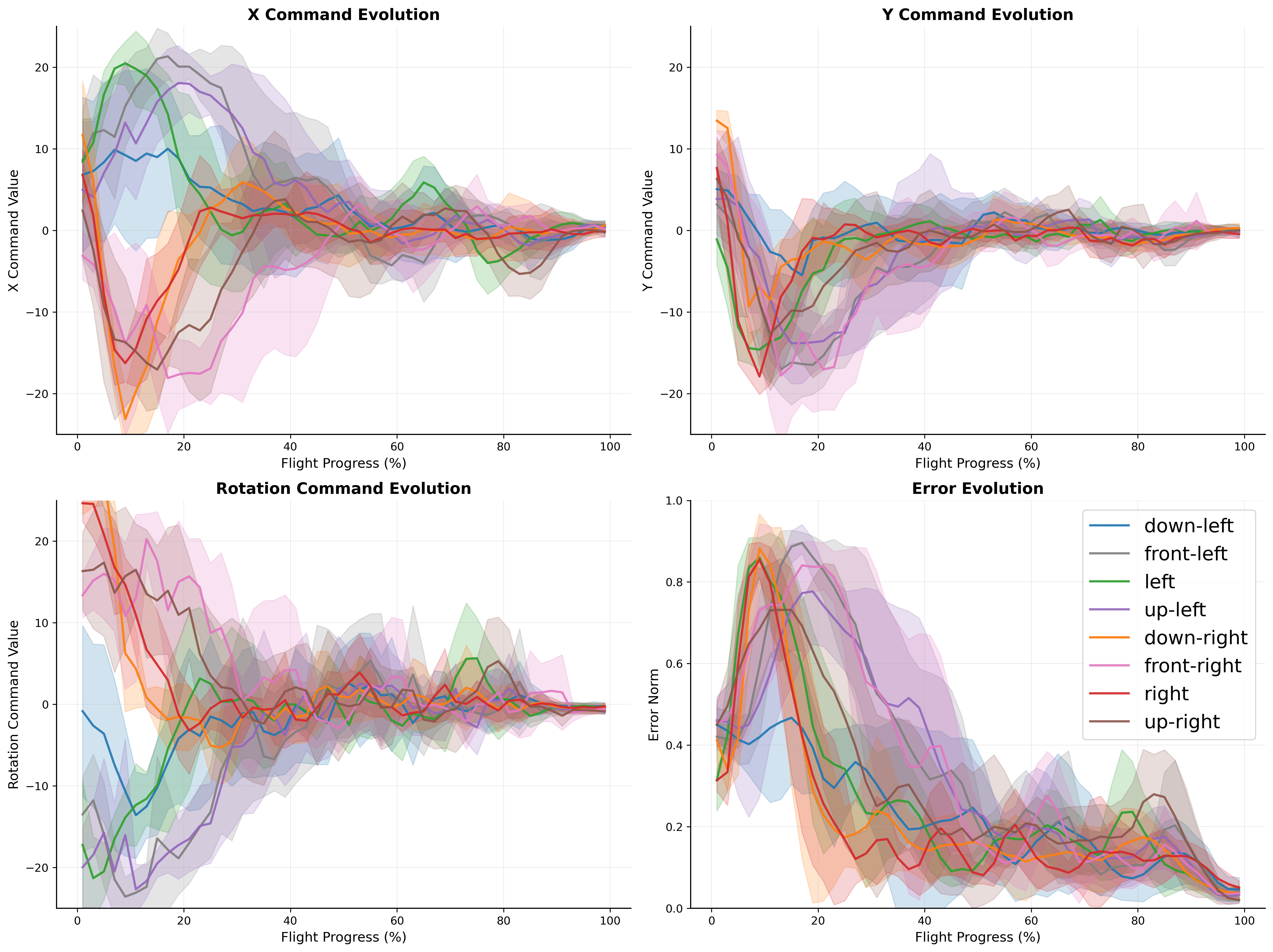

Temporal Evolution of Control. Comparison of control commands and error evolution on novel test sequences across 8 different starting points. Top Row: Real-world flights. Bottom Row: Simulation. Solid lines represent mean values; shaded areas indicate variability across runs. All control commands and errors converge toward zero, indicating robust trajectory tracking. Note the striking similarity in control behavior between the complex analytical Teacher (1 and 3) and the lightweight Student ConvNet (2 and 4) in both domains, validating our Sim-to-Real transfer pipeline.

Command Distribution Comparison

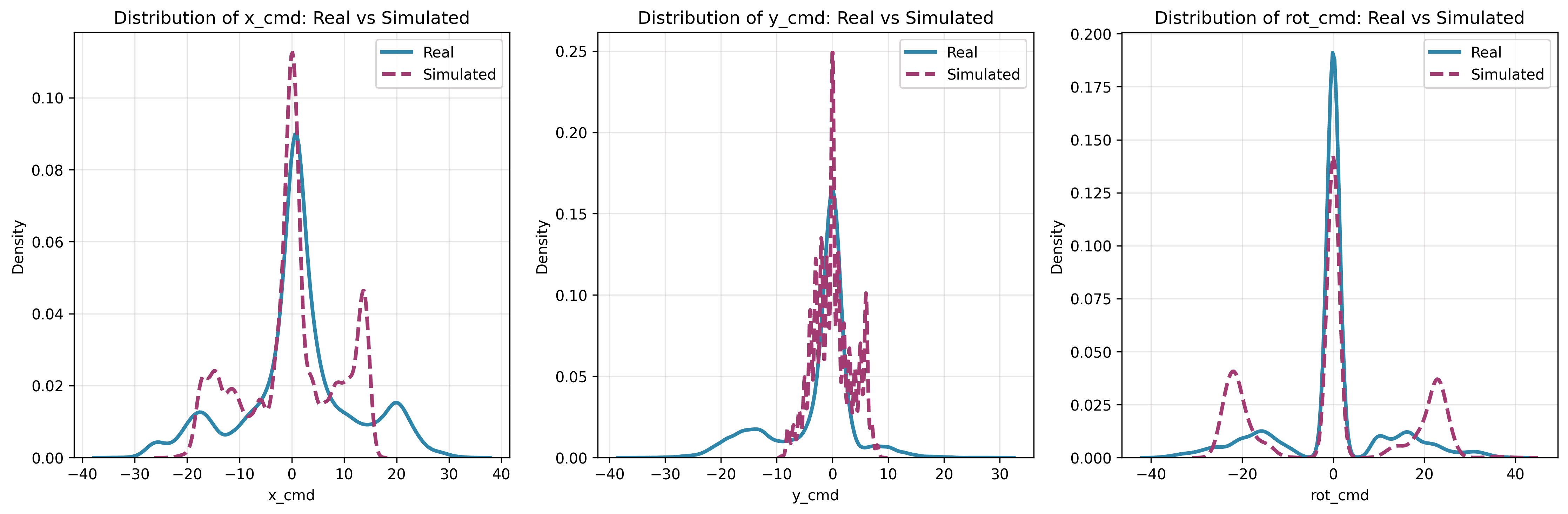

Sim-to-Real Domain Alignment. Aggregated probability density functions of control commands (linear velocities x, y and angular yaw rate rot) across all experiments. The strong overlap between the Real-World and Digital-Twin distributions validates the fidelity of our simulation environment.

Trajectory Analysis

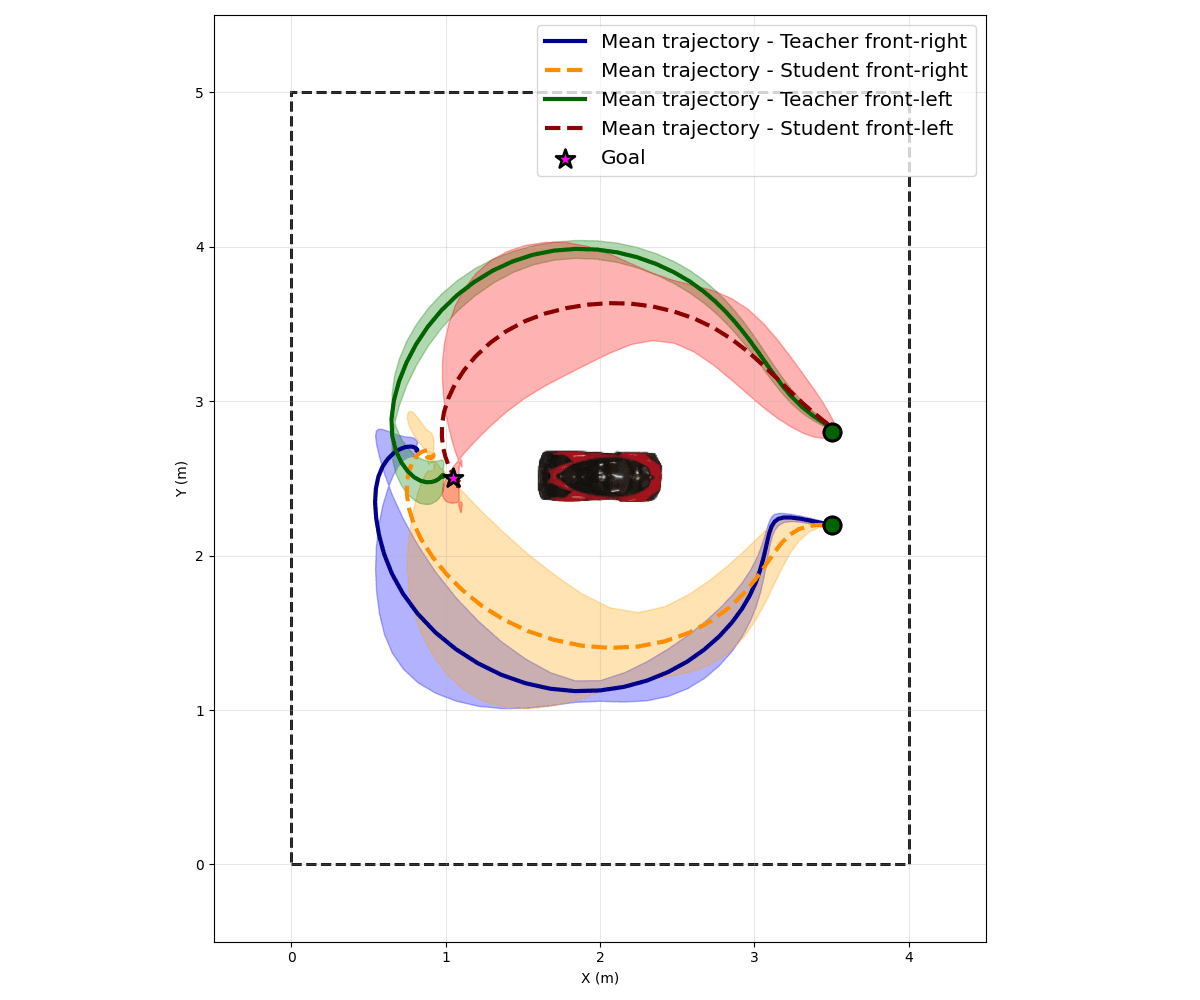

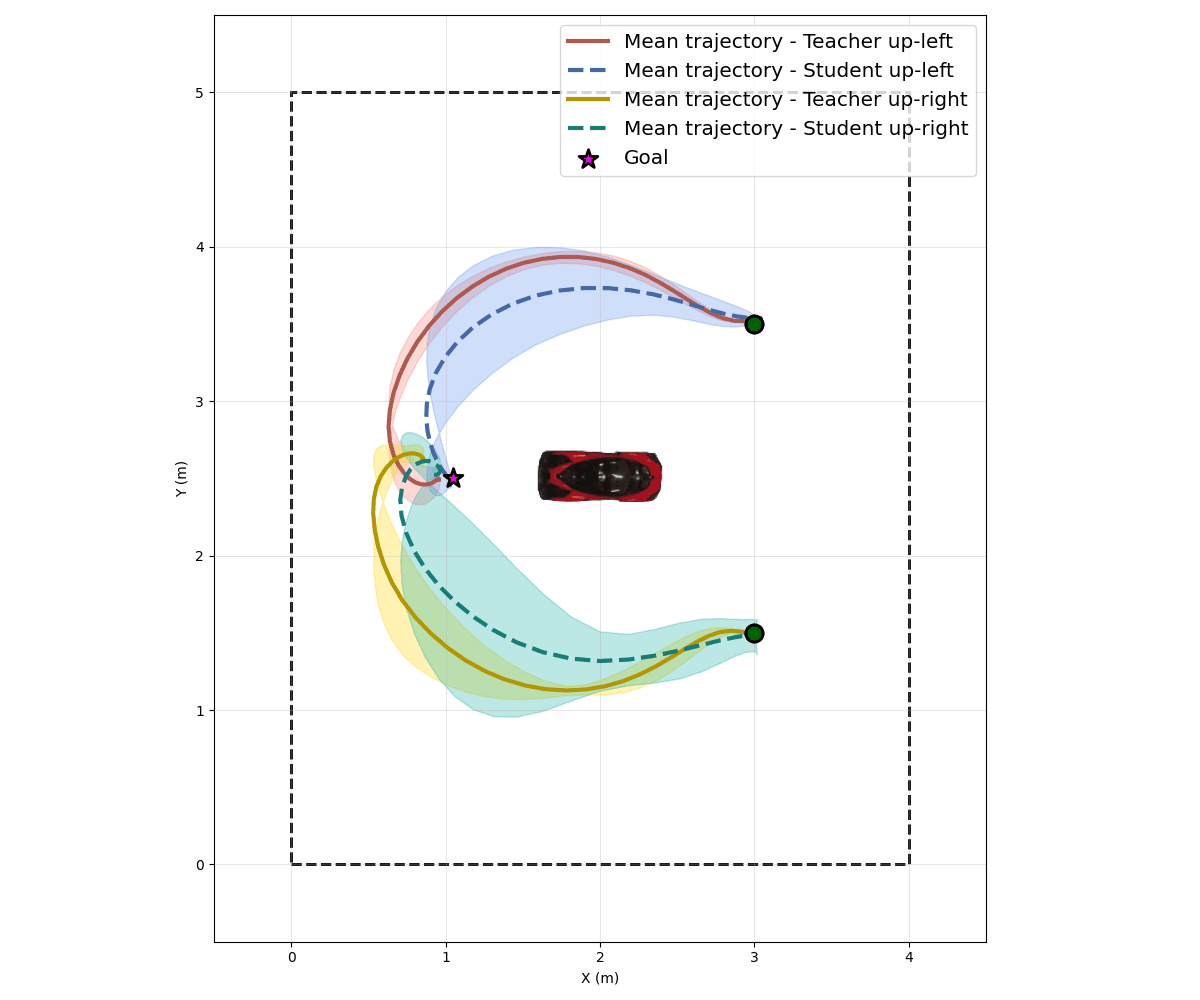

2D Flight Trajectories. Trajectories of teacher and student simulation flights with mean and standard deviation across 4 starting poses. Left: Front approaches. Right: Up approaches. Green circles indicate starting points, the Star represents the goal pose.
Lines represent mean trajectory over the experiments where Solid Lines = Teacher NSER IBVS and Dashed Lines = Student. Shaded regions indicate trajectory variability across runs. Note that while the Student displays slightly more path variation, it frequently achieves a shorter average path to the target than the analytical Teacher.

Numeric Results

Table 1. Teacher-student comparison across different starting positions. The left side shows results in the simulator; the right side shows results on flights in the real world. Metrics include total flight distance/time, final norm error in pixels (L2 norm of the error vector for all 4 corner points combined), and final IoU (L2 norm and IOU are computed in the last 3 secs of the flight). The teacher is slightly faster in flight time. Student is 11 faster in computation time (see Tab. 2). The student is slightly more accurate (lower errors at destination than the teacher) in simulation, where it was trained more, but it is slightly less accurate in real-world, where it was trained on far fewer flights.

Inference Time Analysis

Table 2. Computation times (in milliseconds) over 30 trials. The small 1.7M params student ConvNet is 11x faster than the teacher.
